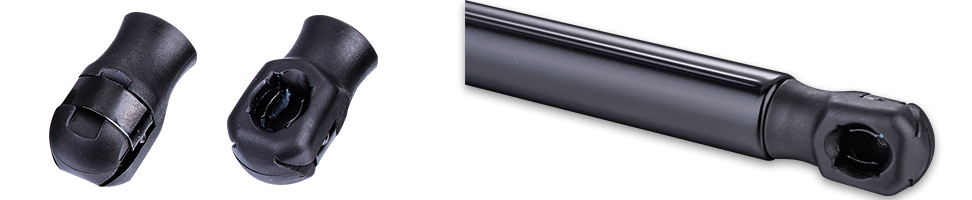

Tailgate gas springs
The principle of Tailgate gas springs is to process a damping groove from the inner wall of the cylinder and change the stretching speed of the gas spring through the change of the section of the damping groove.
Description
The principle of Tailgate gas springs is to process a damping groove from the inner wall of the cylinder and change the stretching speed of the gas spring through the change of the section of the damping groove.
Features
It plays a role in buffering, the use of more stable, and can work in the harsh environment of low temperature.

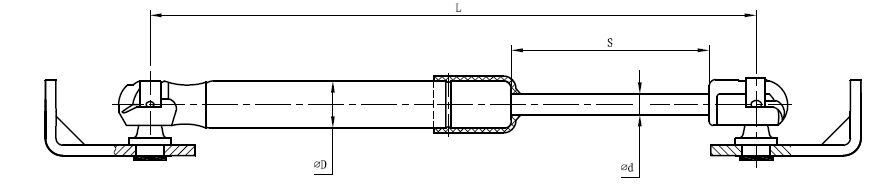

Product Parameters
| d | D | L | S | F1 |
| (mm) | (mm) | (mm) | (mm) | (N) |
| 6 | 15 | 95-600 | 20-250 | 50-400 |
| 8 | 18 | 95-800 | 30-350 | 50-750 |
| 9 | 18 | 95-800 | 30-350 | 50-950 |
| 10 | 22 | 150-1200 | 50-550 | 100-1200 |
| 10 | 23 | 150-1200 | 50-550 | 100-1200 |
| 12 | 22 | 150-1200 | 50-550 | 100-1350 |
| 12 | 27 | 150-1500 | 50-700 | 100-1500 |
| 14 | 28 | 150-1750 | 50-850 | 200-2500 |
