Safety Locking Gas Spring

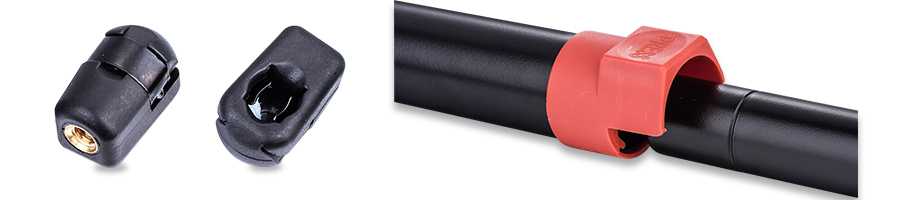

The Safety Locking Gas Spring is equipped with a locking protection device at the piston rod of a standard gas spring. When the lock is opened, it can be compressed.
In the case of a sudden failure of the gas spring can play a role in security protection.
Description
The safety locking gas spring is equipped with a locking protection device at the piston rod of a standard gas spring. When the lock is opened, it can be compressed.
Features
In the case of a sudden failure of the gas spring can play a role in security protection.

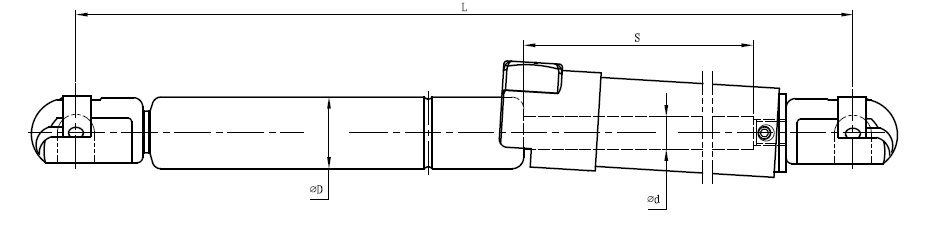

Product Parameters
| d | D | L | S | F1 |
| (mm) | (mm) | (mm) | (mm) | (N) |
| 6 | 15 | 95-600 | 20-250 | 50-400 |
| 8 | 18 | 95-800 | 30-350 | 50-750 |
| 9 | 18 | 95-800 | 30-350 | 50-950 |
| 10 | 22 | 150-1200 | 50-550 | 100-1200 |
| 14 | 28 | 150-1750 | 50-850 | 200-2500 |
